Mobile Power Station Delta MAX from EcoFlow

Compact -flexible -powerfull!

The Ecoflow Delta Max Power Station CH version is a unique Power Station with a capacity of 1,612Wh. This Power Station offers the possibility to expand the capacity up to 6 kWh. Practically any device with up to 2,000 W can be supplied with power. This makes the Power Station suitable not only for charging smartphones, tablets, laptops, drones, lighting, televisions and small fridges, but also for devices with a higher output. Think of camping stoves, coffee machines and water pumps, for example. The Ecoflow Delta Max CH version Power Station has an integrated 1,612 Wh lithium-ion battery. If the capacity is not sufficient, the capacity can be tripled to 5,644 Wh. This is possible with the additional Delta Max battery from Ecoflow. Thanks to X-Stream technology, the Delta Max can be charged from 0 - 80 % within 65 minutes. This means that the charging time can be limited to 2 hours.

Good to know :

In addition, the Power Station also has an advanced solar input of 800 W / 11 V - 100 V. If you also use the power supply unit, you can charge the Delta Max CH version with 2,600 W. This maximizes the charging process. Thanks to the EcoFlow application, all important information is available to you at the touch of a button: such as the status of the charging station, the X-Boost control panel and the charging options. The Detla Max has a WiFi function, allowing the power station to be easily controlled remotely via the WiFi router.

Specifications

• Type: Power Station
• Battery type: NCM Li-Ion
• Battery capacity in Wh : 1'612 Wh
• Dimensions: 497 x 242 x 305 mm
• Weight: 22'000 g
• Material: plastic
• Color: Grey-black
• Battery type: NCM Li-Ion
• Splashproof: No
• Overload protection: Yes
• Charging indicator: Yes
• Charging method: AC socket, 12 V car adapter, solar panel
• Charging time :
  • 1.6 hours (AC)
  • 16.8 hours (12 / 24V car adapter )
  • 4.5-9 hours (using 4x110W solar panels)
  • 3.4-6.8 hours (when using 4 x 160 W solar modules)
  • 2.5-5 hours (when using 2 x 400 W solar modules)
• Intelligent additional battery: Supports up to 2 DELTA Max Smart Extra batteries (sold separately)
• Certificates: UL, CE, FCC, RoHS, PSE
• Charging temperature: 32 to 113 °F (0 to 45 °C)
• Discharge temperature: -4 to 113 °F (-20 to 45 °C)
• Warranty: 24+12 months (registration for warranty extension)

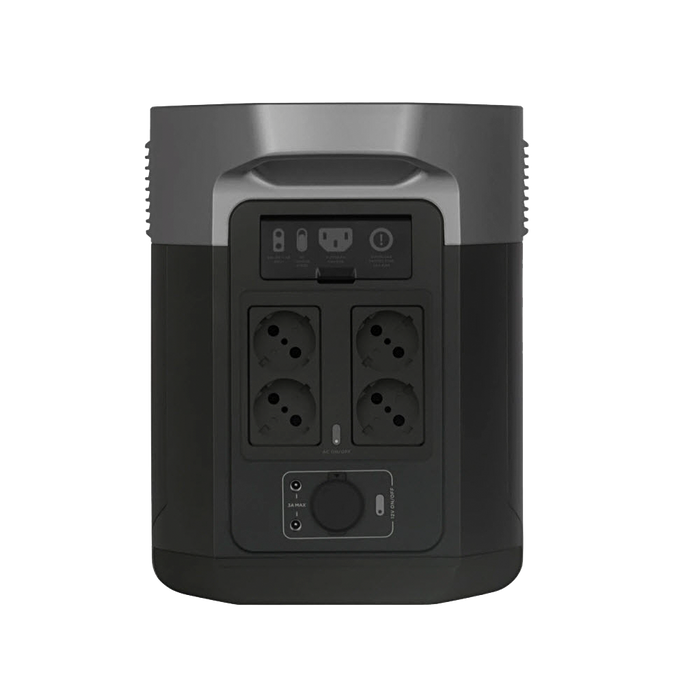

Connections

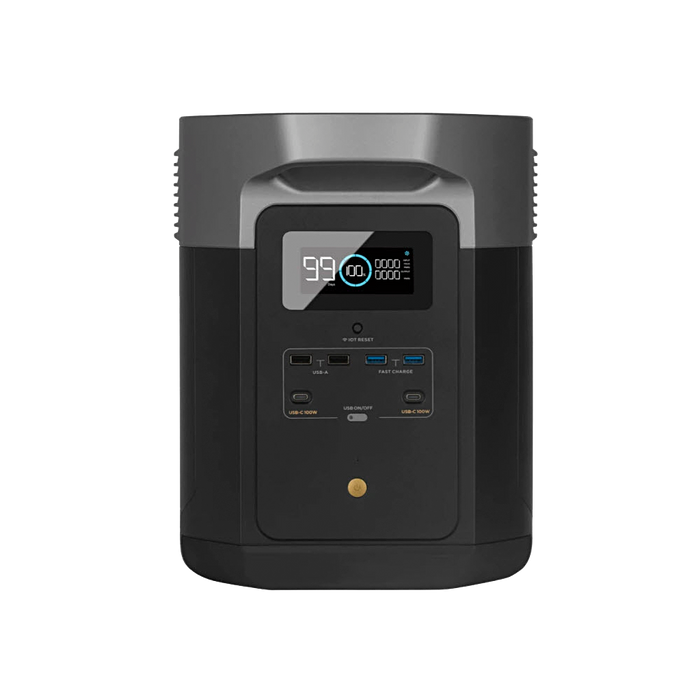

• Output:

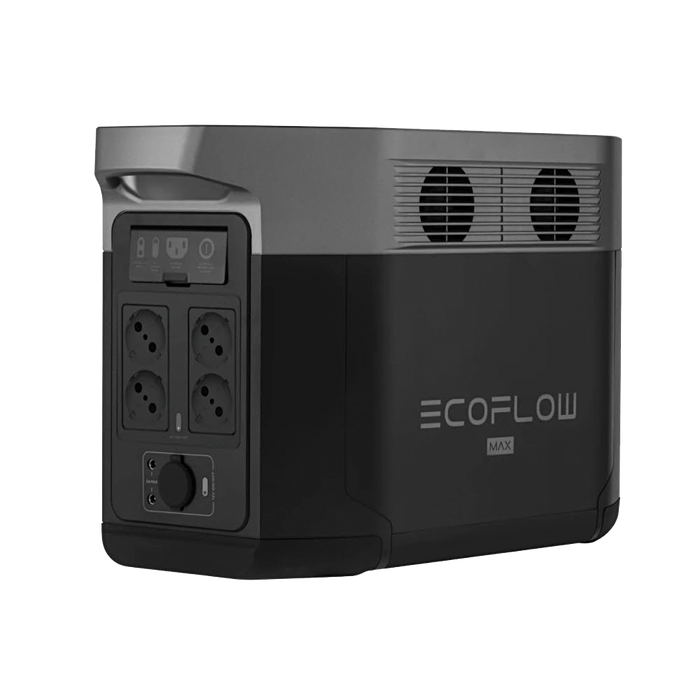

  • 4x AC output: Pure sine wave, 2,000 W in total (surge 4,600 W), 230 V~ (50 Hz/60 Hz)
  • 2x USB-A output: 5 V DC, 2.4 A, max. 12 W per connection
  • 2x USB-A fast charging: 5V, 2.4A / 9V, 2A / 12V, 1.5A, 18W max per port
  • 2x USB-C output: 5/9/12/15/20V, 5A, 100W max per port
  • 1x car power: 12.6V, 10A, 126W Max
• Entrance:
  • AC charging input (current): X-Stream charging (1,600 W max.)
  • AC charging input (voltage and current): 220-240V~50Hz/60Hz, 10A
  • Solar charge input: 800W Max, 11-100V, 10A
  • Car charger: 12V/24V battery, 8A

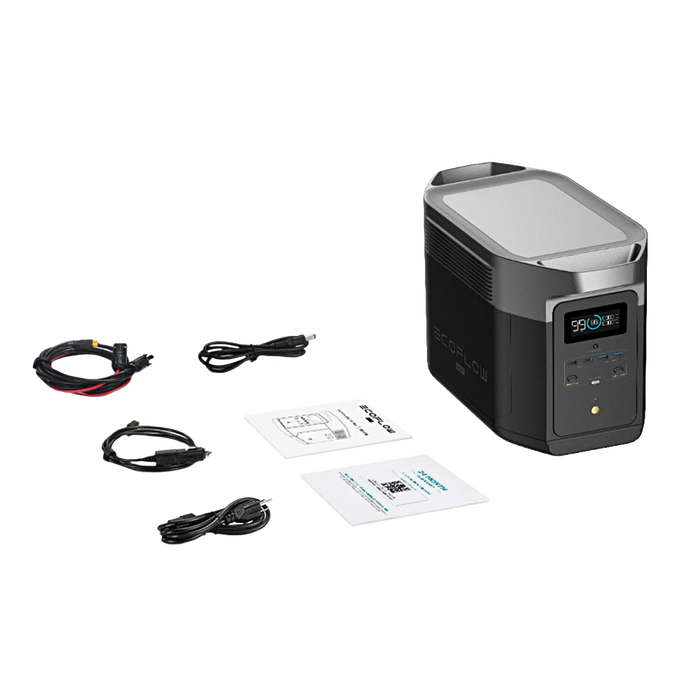

 Scope of delivery

• 1x EcoFlow Delta Max 1'612Wh CH version (EU versions are available on request)
• 1x AC charging cable
• 1x car charging cable
• 1x DC5521 to DC5525 cable
• 1x instruction
